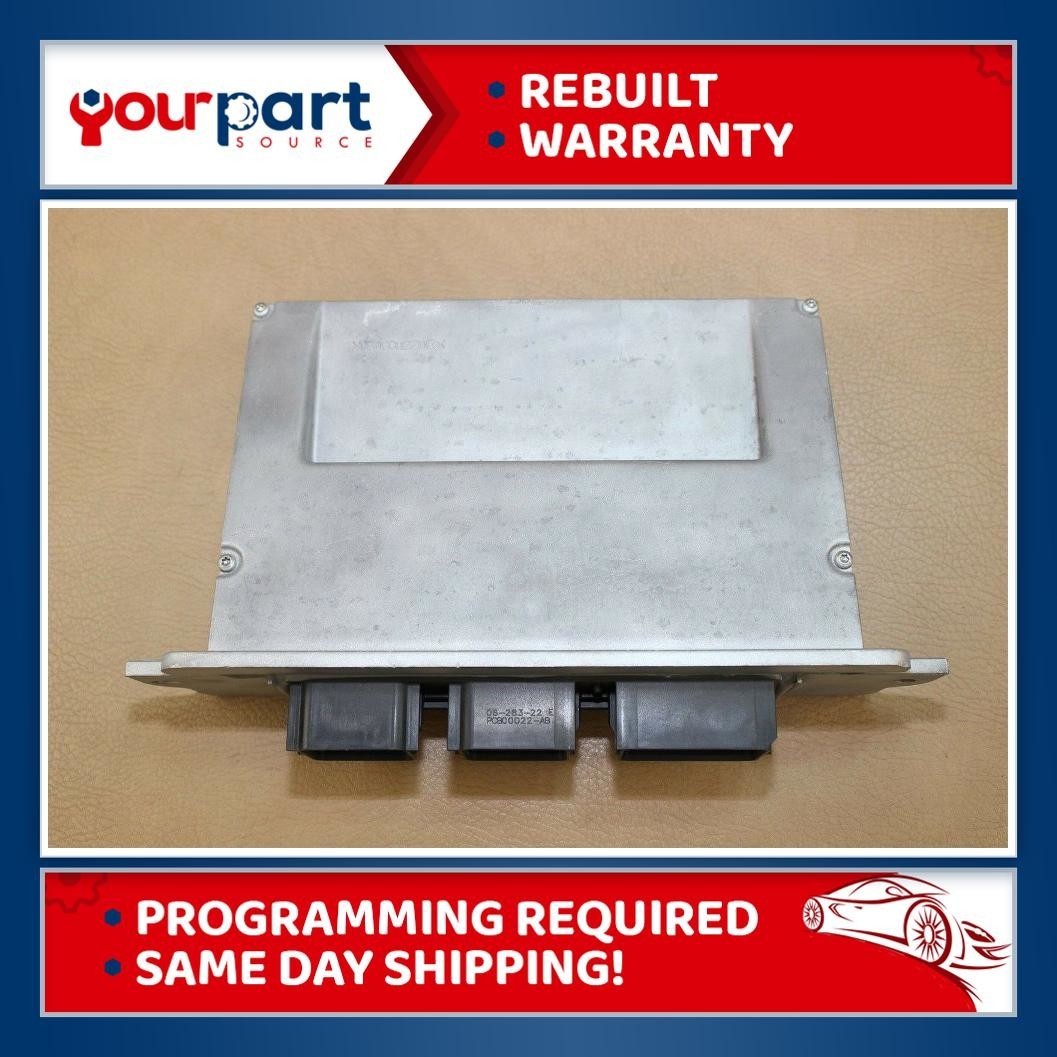

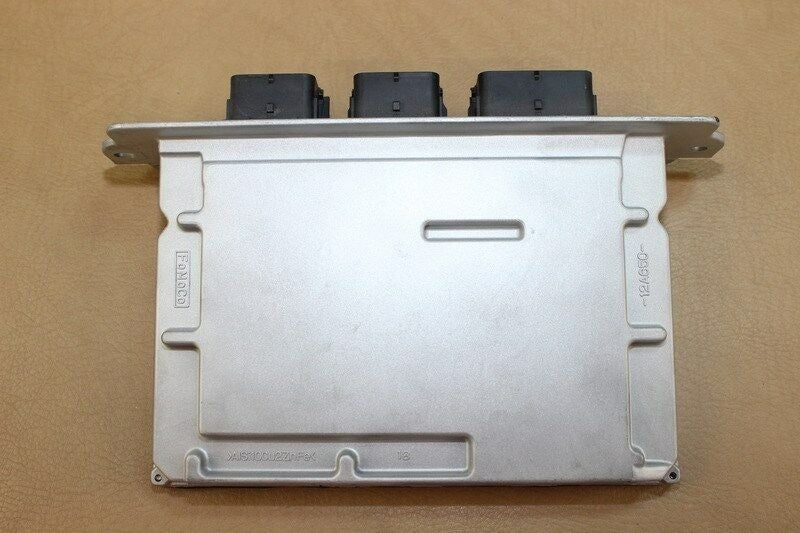

TESTED 05-06 F-350 F-450 6.8L ECU PCM ENGINE COMPUTER 5C3A-12A650-MRB VK2-C3694
TESTED 05-06 F-350 F-450 6.8L ECU PCM ENGINE COMPUTER 5C3A-12A650-MRB VK2-C3694
TESTED 05-06 F-350 F-450 6.8L ECU PCM ENGINE COMPUTER 5C3A-12A650-MRB VK2-C3694

TESTED 05-06 F-350 F-450 6.8L ECU PCM ENGINE COMPUTER 5C3A-12A650-MRB VK2-C3694

Product Description

Part Number

5C3A-12A650-MRB & VK2-C3694 - You must have both of these on your part number sticker!

ECU will arrive with updated part number sticker having been programmed with latest Ford Software Updates!

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers on 2005 and 2006 F-250 F-350 F-450 F-550 6.8L vans :
(Please note your ecu must have VK2-C3694 on it as well as one of the below part numbers.)


5C3A-12A650-MRB

5C3A-12A650-JAC

5C3A-12A650-JDA

5C3A-12A650-JEA

5C3A-12A650-JFA

5C3A-12A650-JGA

5C3A-12A650-JHA

5C3A-12A650-JHB

5C3A-12A650-JJA

5C3A-12A650-JJB

5C3A-12A650-MMB

5C3A-12A650-MPB

5C3A-12A650-MSA

5C3A-12A650-MSB

5C3A-12A650-MTA

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU has TCU communication and a/c compressor signal!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must do the following three steps:

Step 1: Match your part number per above fitment guide

Step 2: Program ecu to your VIN. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer.

Item Condition

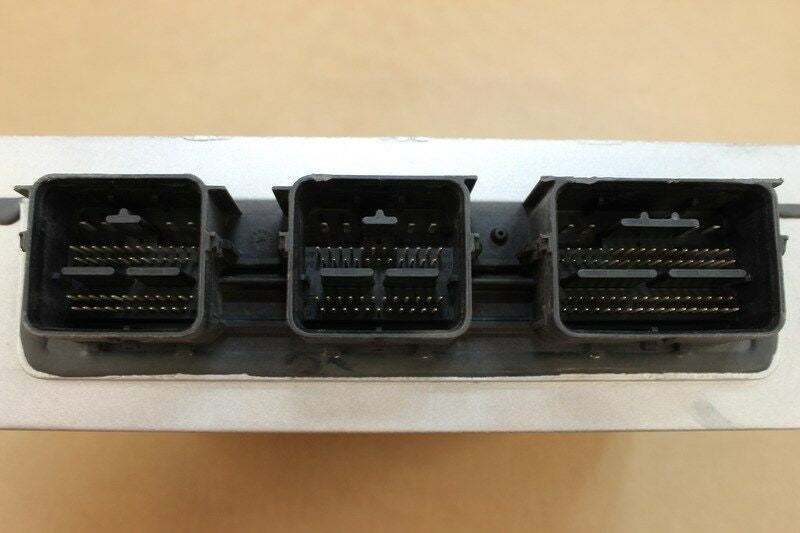

  • Mounting points are all open and intact
  • Pins perfect, none are broken or bent
  • Lock tabs in place
  • Connector plastic may have minor chip but pins, guides and lock tabs are in place.

Warranty / Core

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item. We'll send a prepaid return label for your core. Once your core comes back we'll issue a $50 partial refund through eBay.
