08 JEEP LIBERTY 3.7L A/T ECU ECM PCM ENGINE CONTROL COMPUTER 05187513AL TESTED
Product Description

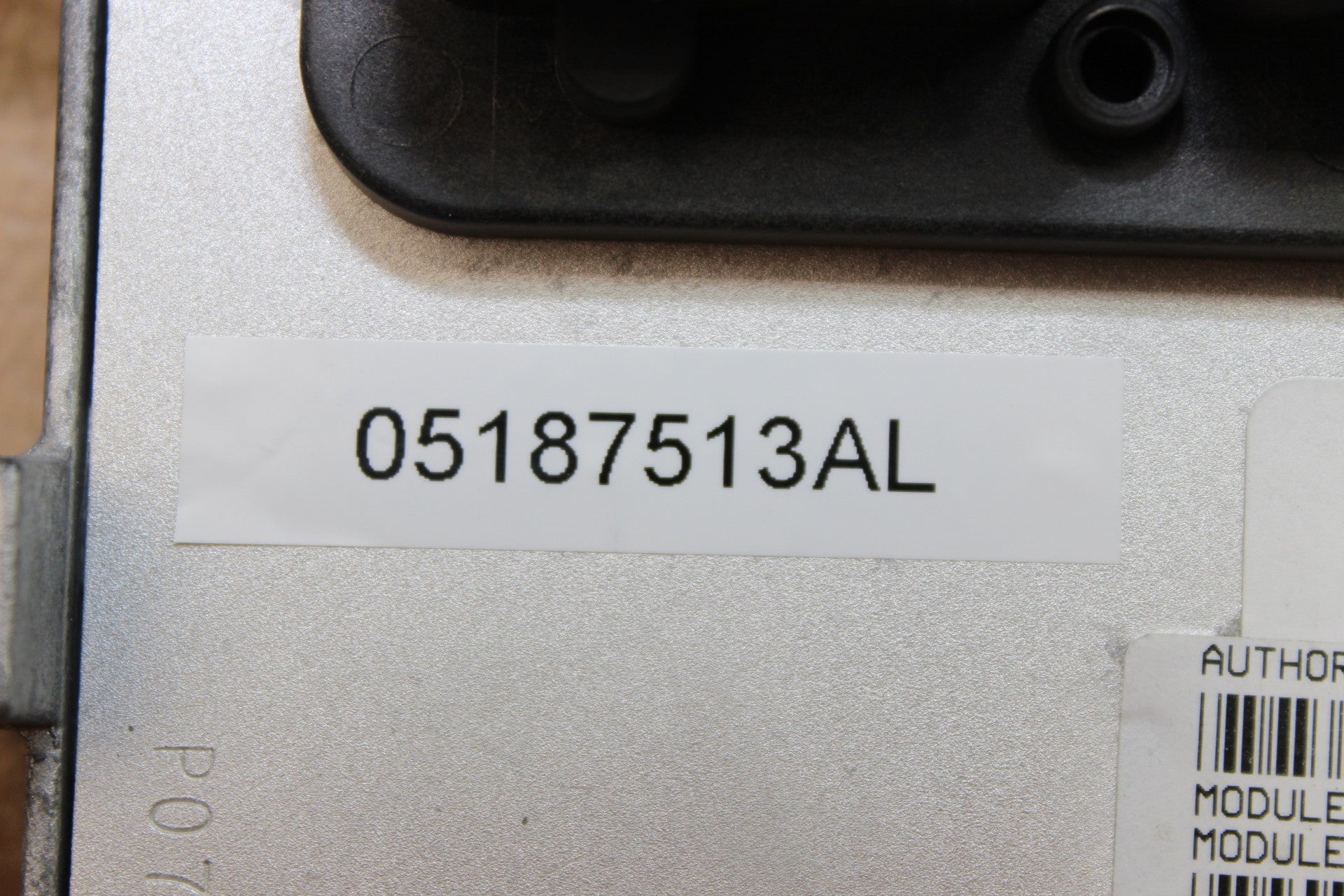

Part Number
05187513AL
ECU has SKIM security and requires programming before installation.
We offer FREE programming, see details below!
Fitment/Interchange
This ecu will interchange or replace the following part numbers:
05187513AA
05187513AB
05187513AC
05187513AD
05187513AE
05187513AF
05187513AG
05187513AH
05187513AI
05187513AJ
05187513AK
05187513AL
Tech Notes
- ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
- Alternator charging circuit tested good or has been rebuilt!
- Reference Voltage Good!
- ECU powered up and has communication!
- ECU fuel pump/main relay test good!
- ECU injectors/coils test good and much more!
Install Notes
- Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
- Disconnect and remove the module to be replaced.
- Install and connect the replacement module.
- Connect the negative terminal of the battery.
- See "Programming" below for additional install instructions.
Programming
For Plug and Play you must follow the below three steps:
Step 1: Match your part number series per above fitment guide
Step 2: Match your ecu security. Most NGC style ecu's have SKIM security and are not plug and play. (You generally will have grey ignition keys or chipped keys.)
Step 3: Program ecu to your VIN and mileage. We provide free programming for our customers. During checkout you must list your VIN and mileage in the "Notes to Seller" for us to program the ECM. If we do not hear from you through the order notes or a message through eBay we will assume your mechanic is performing the programming (no problem at all) and we will ship the ECM out the next business day as directed by eBay.

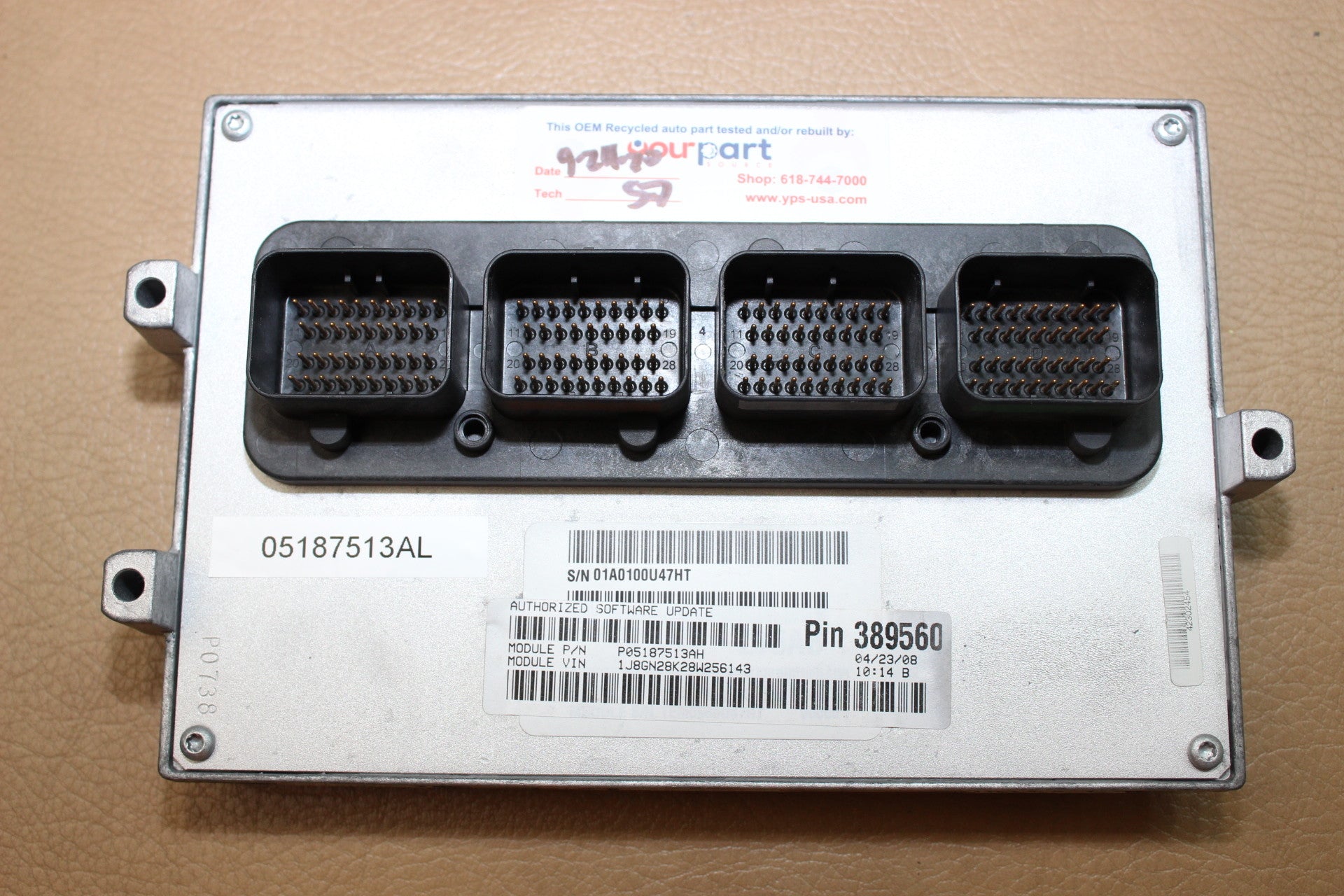

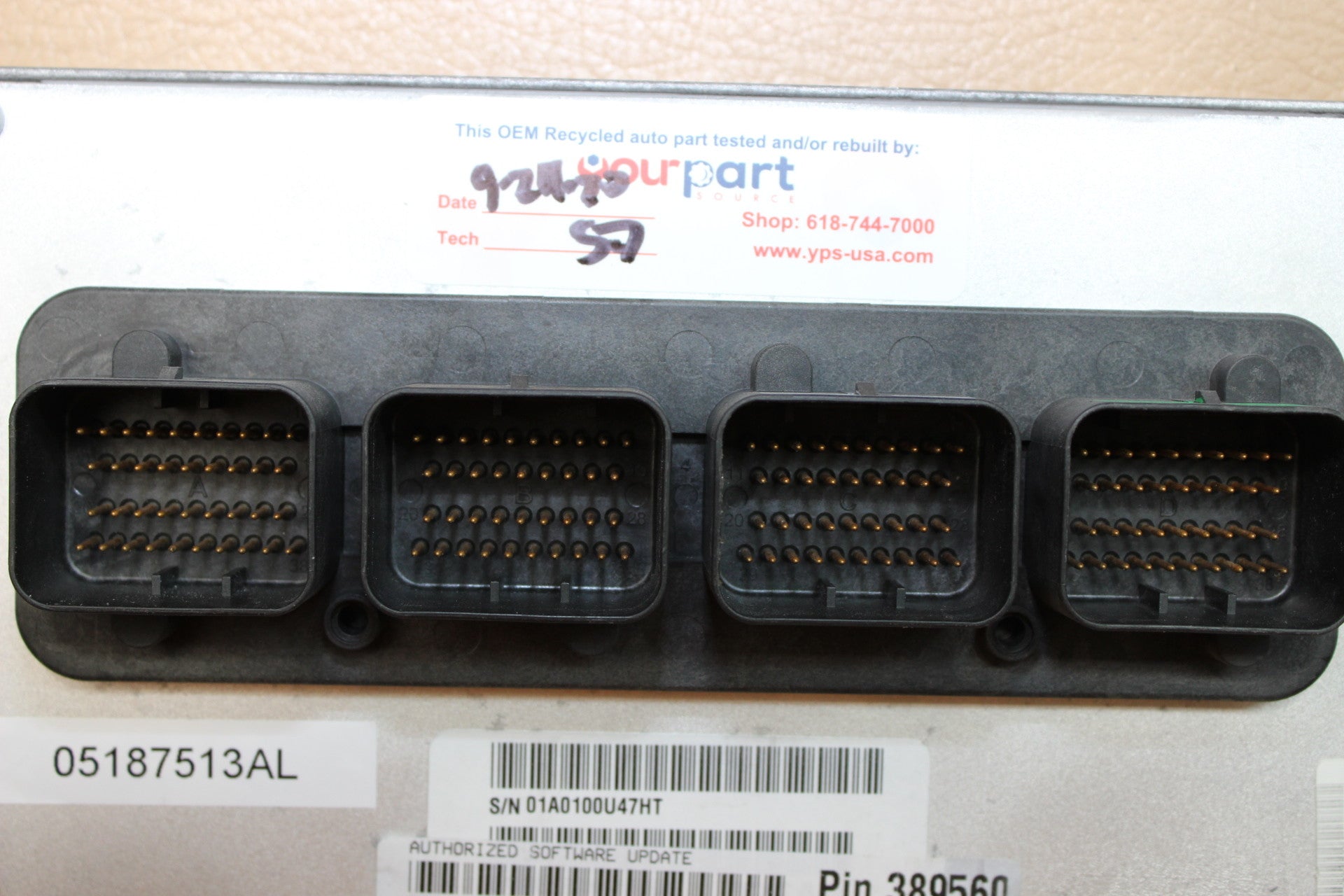

Item Condition
- Mounting points are all open and intact

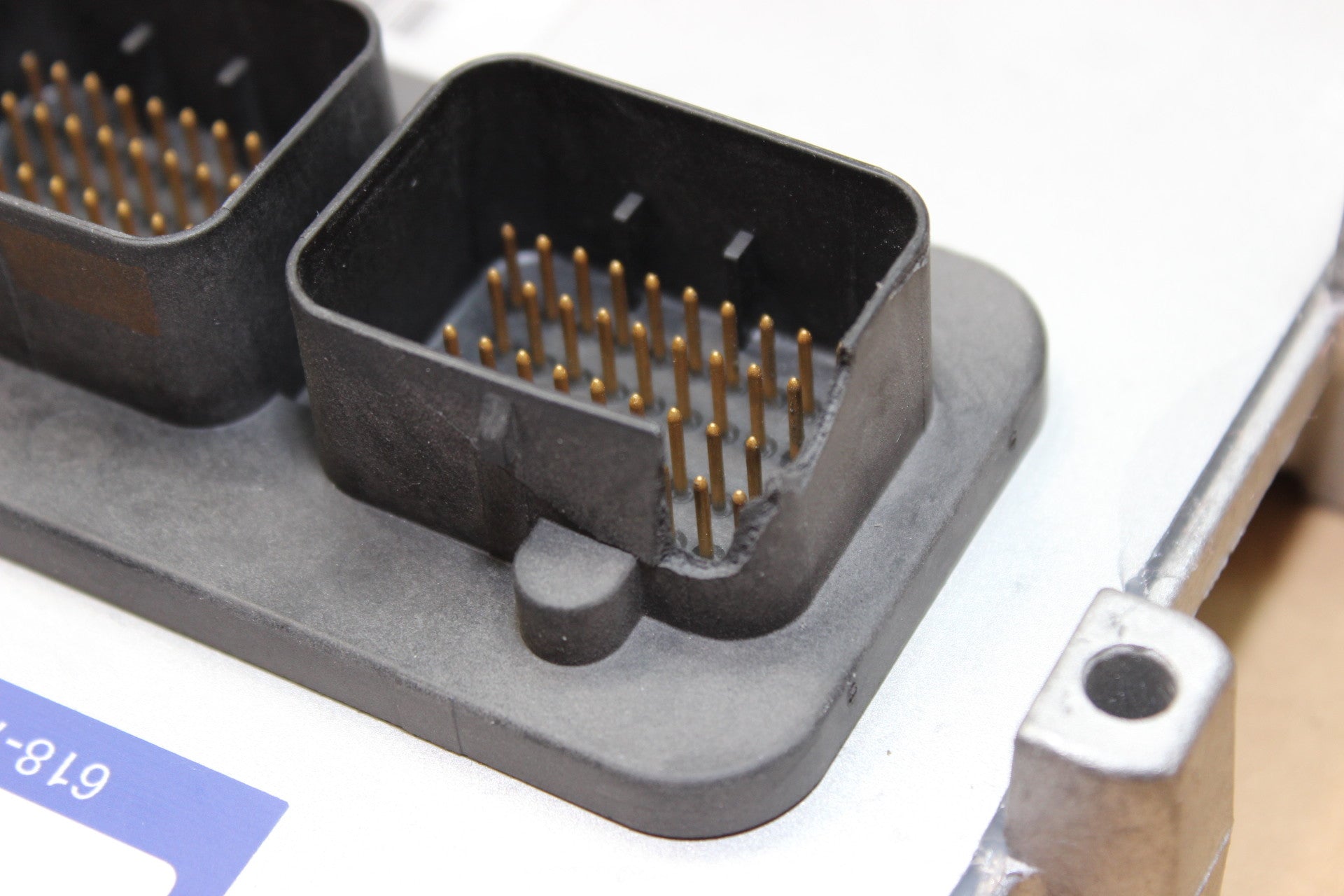

- Pins perfect, none are broken or bent

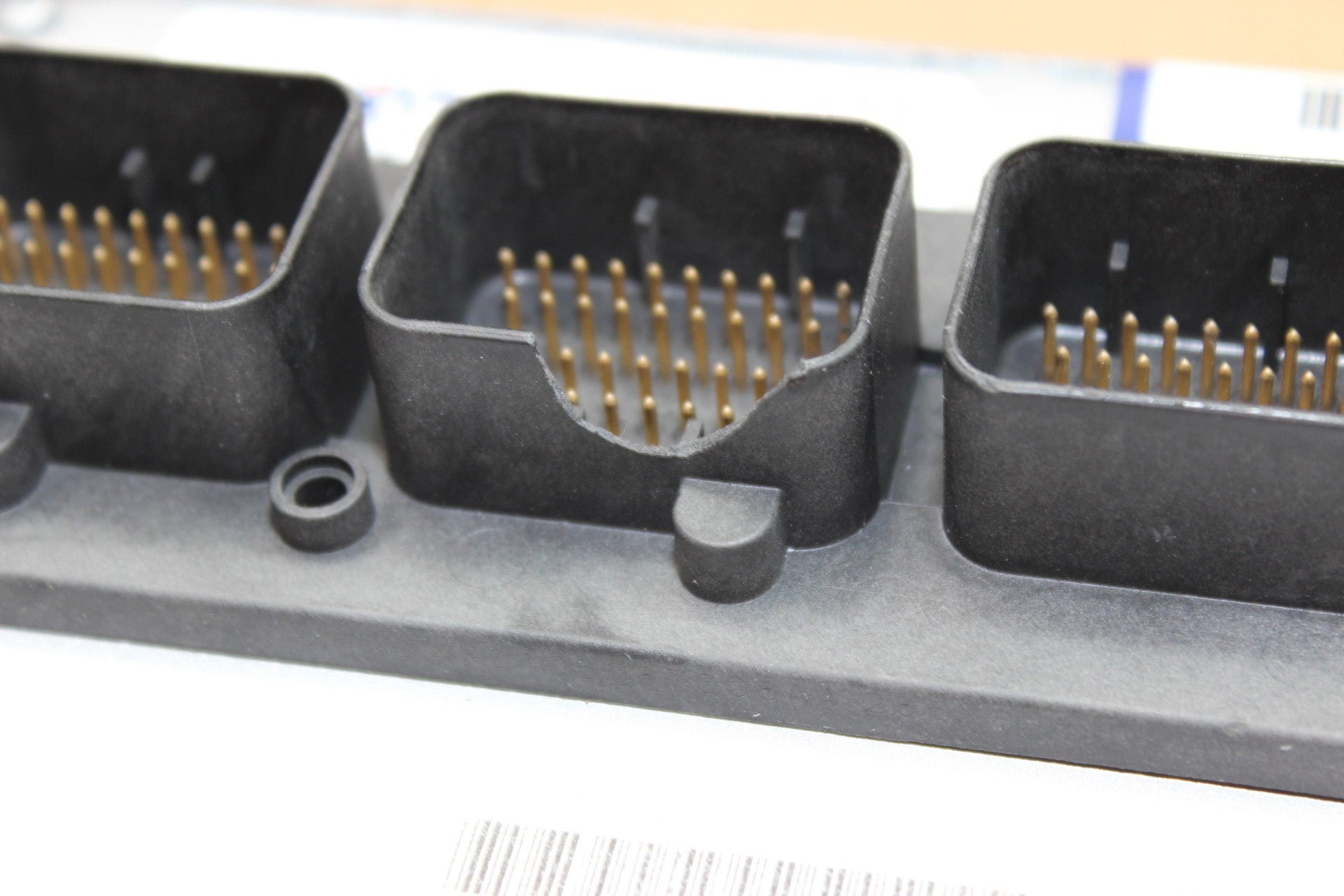

- Lock tabs in place but there is a little chipped plastic on the connector housings - see pics.
Warranty / Optional Core Return
This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
If you would like to return your core for a $15 partial refund let us know during checkout through the "notes to seller" and we will send a prepaid return label with your order. It's that simple. Once your original item comes in we will process your refund promptly.
