Product Description

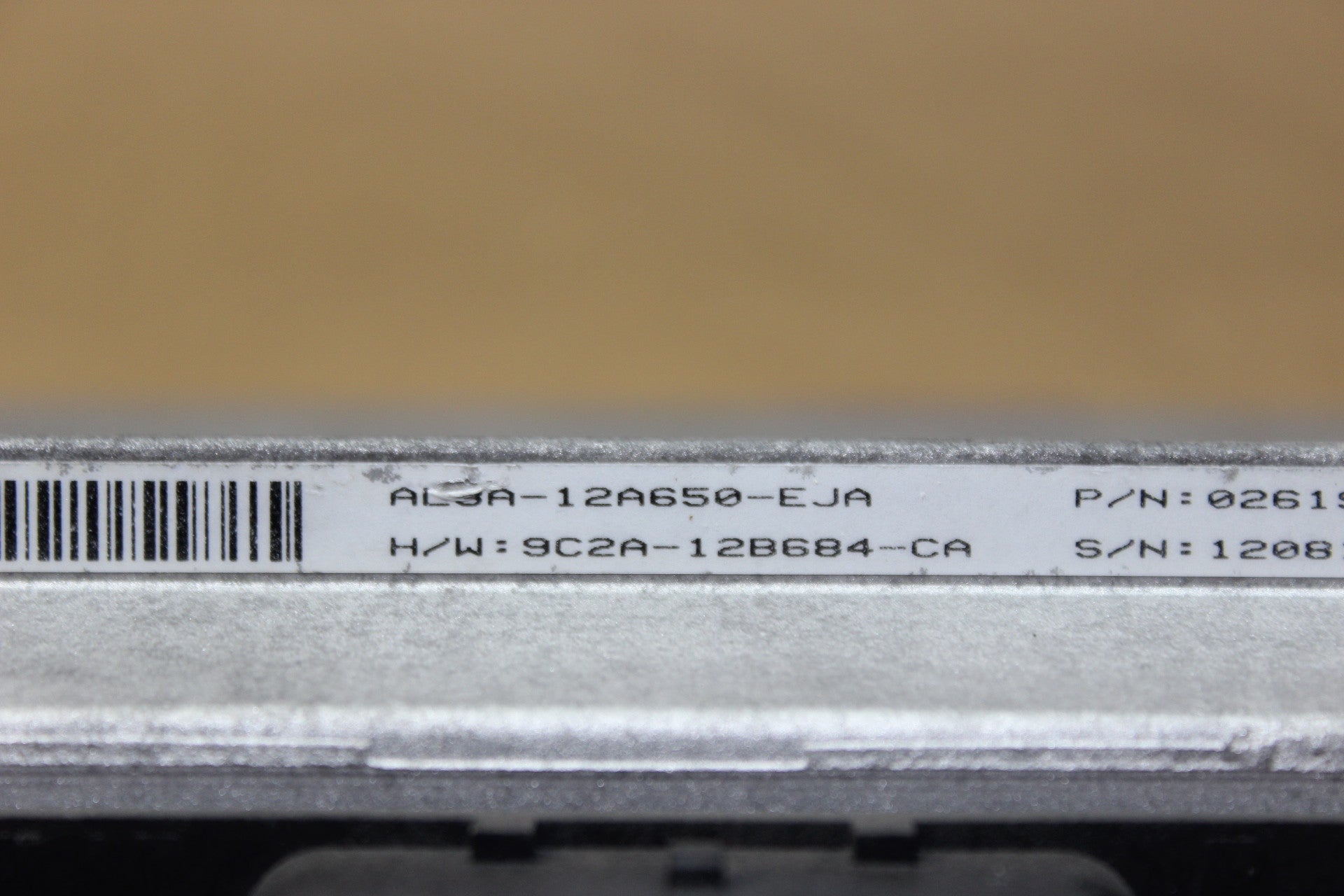

Part Number

AL3A-12A650-EJA - You must have both of these numbers on your original ecu.

Fitment/Interchange

This ecu will interchange or replace the following ecu part numbers on 2010 5.4L Ford F-150 and F-250 models with the same part numbers:

AL3A-12A650-EBA

AL3A-12A650-ECA

AL3A-12A650-EDA

AL3A-12A650-EEA

AL3A-12A650-EFA

AL3A-12A650-EGA

AL3A-12A650-EHA

AL3A-12A650-EJA

AL3A-12A650-EKA

AL3A-12A650-ELA

AL3A-12A650-EMA

AL3A-12A650-ENA

AL3A-12A650-EPA

AL3A-12A650-ERA

AL3A-12A650-ESA

Tech Notes

    ECU has been tested with our state of the art vehicle simulator which tests over 25 circuits of the ECU! Some of those are listed below:
  • Reference Voltage Good!
  • ECU powered up and has communication!
  • ECU fuel pump/main relay tested good!
  • ECU injectors/coils tested good and much more!

Install Notes

  • Disconnect the negative terminal of the battery. Make sure the battery connector is not touching the battery post.
  • Disconnect and remove the module to be replaced.
  • Install and connect the replacement module.
  • Connect the negative terminal of the battery.
  • See "Programming / PATS Security" below for additional install instructions.

Programming / PATS Security

For Plug and Play you must do the following three steps:

Step 1: Match your part number per above fitment guide

Step 2: Program ecu to your VIN. You will need your local mechanic, Ford dealer or properly equipped locksmith to program your VIN into the ecu. Without this you will get a "no start" condition.

Step 3: If your vehicle has PATS security (Most Ford/Lincoln/Mercury's do) you must have your keys programmed. We recommend you have this done by your local locksmith. In most cases they will travel to your location and the process takes less than 30 minutes. No towing necessary and your local locksmith will be cheaper than a dealer. If your vehicle has PATS and is not programmed you will get a "no start".

Item Condition

  • Mounting points are all open and intact

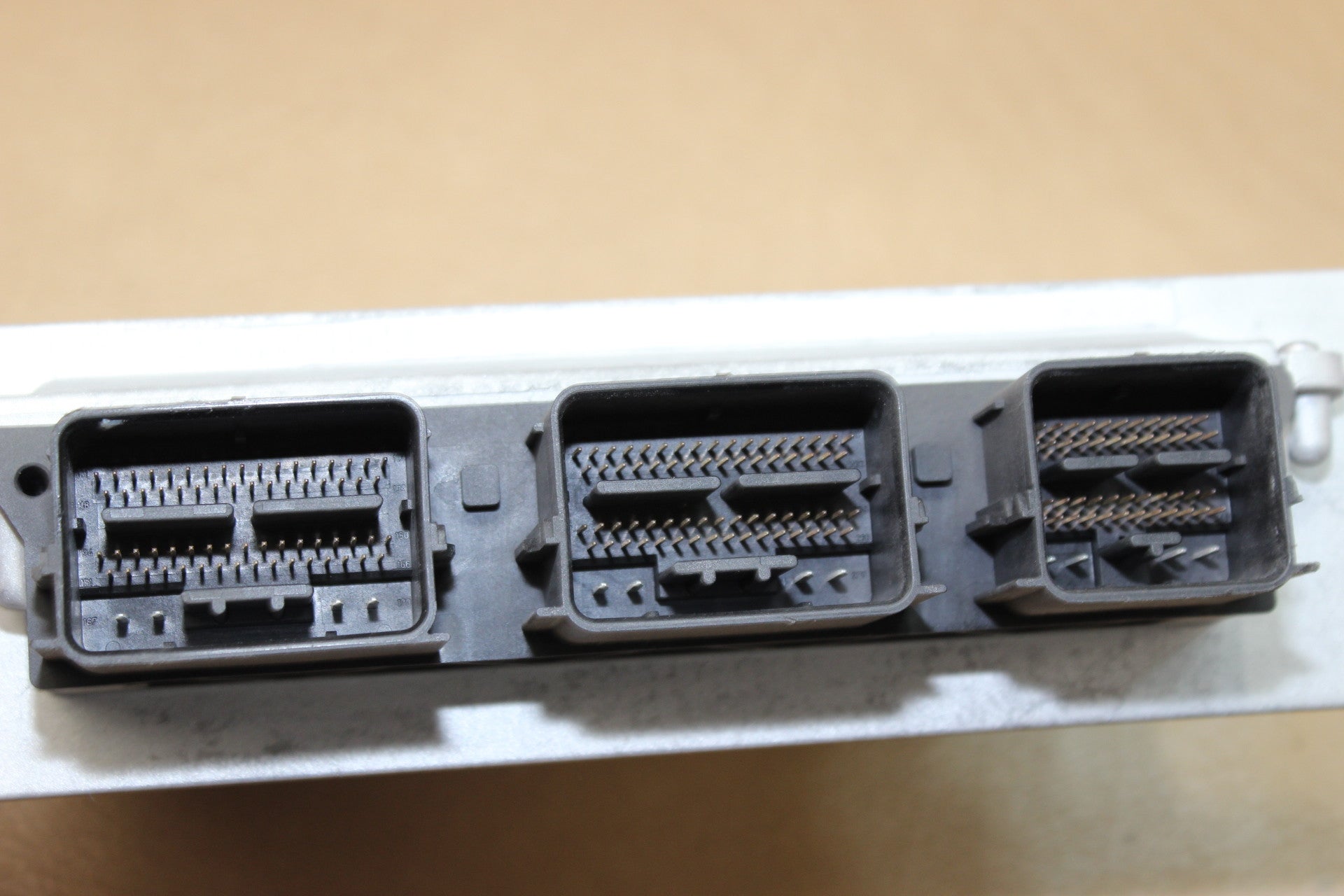

  • Pins perfect, none are broken or bent
  • Lock tabs in place
  • Connector plastic may have minor chip but pins, guides and lock tabs are in place.

Warranty

This ECM comes with a 90 day warranty from the date of purchase. Please keep a copy of your purchase record which we will send with your item.
